Protect Your Building With Long Lasting Metal Panels

Concealed Fastener Panels - Standing Seam - Architectural

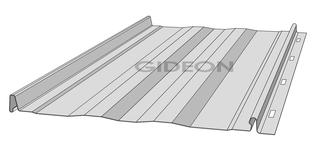

G100s

Superior durability with an attractive appearance.

Major ribs are 1" tall, 16" nominal on-center, 16" nominal coverage width. Standard surface condition (as shown) features striations and clip relief. Features a perforated fastener flange in which screws are placed. Adjacent panels overlay the fastener flange and snap lock into place hiding the low profile fasteners. Non-standard coverage widths are available upon request.

  • 26 & 24 gauge
  • Prepainted
  • Galvalume
  • Cut-To-Length
  • UL Rated
  • Cool Color

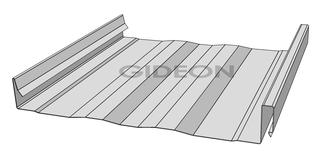

G175s

A traditional panel engineered to last for decades.

Major ribs are 1-3/4" tall, 18" nominal on-center, 18" nominal coverage width. Standard surface condition (as shown) features striations and clip relief. Fastens to substrate with a clip and screws. Non-standard coverage widths are available upon request. Weather-Tightness Warranty available upon approval from Technical Department. Meets Engineered Metal Roof System criteria,

  • 24 gauge
  • Prepainted
  • Galvalume
  • UL Rated
  • Cool Color

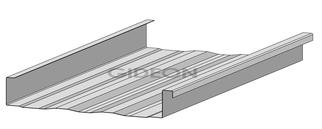

G200m

A proven favorite that lasts for years

Major ribs are 2" tall, 18" nominal on-center, 18" nominal coverage width. Standard surface condition (as shown) features striations and clip relief. Fastens to substrate with a clip and screws. Non-standard coverage widths are available upon request. Weather-Tightness Warranty available upon approval from Technical Department. Meets Engineered Metal Roof System criteria, contact Gideon Steel for details. Determining if panels will be mechanically seamed as single-lock or double-lock may effect type of electric seamer and clips to be used.

  • 24 gauge
  • Prepainted
  • Galvalume
  • UL Rated
  • Cool Color

Exposed Fastener Panels

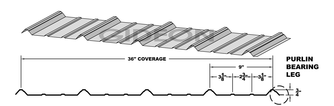

Gideon Tuff-Rib AG

Superior durability with an attractive appearance.

Major ribs are 3/4" tall, 9" on-center, 36" coverage width. Two minor ribs are equally spaced between major ribs. Strengthening rib on major rib. Siphon Groove feature creates drain channel for added protection against leaks and increased Weather-Tightness. Purlin bearing leg feature on under-lap side of panel.Enhanced Overlap Leg feature allows for increased weather-tightness. Most other manufacturers do not have this feature.

  • 26 & 24 gauge
  • Prepainted
  • Galvalume
  • Cut-To-Length
  • UL Rated
  • Cool Color

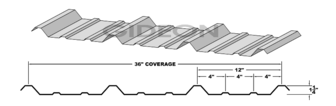

Gideon R-Panel

A traditional panel engineered to last for decades.

Major ribs are 1-1/4" tall, 12" on-center, 36" coverage width. Two minor ribs are equally spaced between major ribs. Enhanced Overlap Leg feature allows for increased weather-tightness. Most other manufacturers do not have this feature.

  • 26 & 24 gauge
  • Prepainted
  • Cut-To-Length
  • Galvalume
  • UL Rated
  • Cool Color

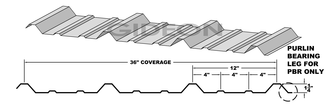

Gideon PBR

A proven favorite that lasts for years

Major ribs are 1-1/4" tall, 12" on-center, 36" coverage width. Two minor ribs are equally spaced between major ribs. Purlin bearing leg feature on under-lap side of panel. PBR stands for Purlin Bearing Leg R-Panel. This is not a necessary feature, but is helpful when installing #14 x 7/8 screws in the panel lap. Enhanced Overlap Leg feature allows for increased weather-tightness. Most other manufacturers do not have this feature.

  • 26 & 24 gauge
  • Prepainted
  • Cut-To-Length
  • Galvalume
  • UL Rated
  • Cool Color

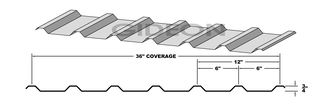

U-Panel

Beautiful Durable & Economical

Major ribs are 3/4" tall, 6" on-center, 36" coverage width. Panel is flat between the major ribs. May have purlin bearing leg feature on under-lap side of panel.

  • 26 gauge
  • Prepainted
  • Cut-To-Length
  • Galvalume

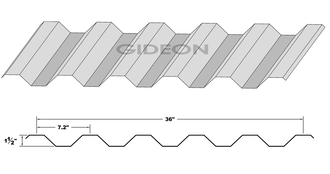

7.2 Panel

A proven favorite that lasts for years

Major ribs are 1-1/2" tall, 7.2" on-center, 36" coverage width. May have purlin bearing leg feature on under-lap side of panel.

  • 26, 24, 22 gauge
  • Prepainted
  • Cut-To-Length
  • Galvalume

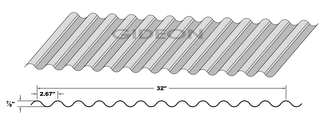

Corrugated 2.67

A proven favorite that lasts for years

Major ribs are 7/8" tall, 2.67" on-center (crest to crest). 32" coverage width when lapped on single rib.

  • 26, 24, 22 gauge
  • Prepainted
  • Cut-To-Length
  • Galvalume

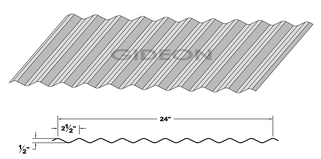

Corrugated 2.5

A proven favorite that lasts for years

Major ribs are 1/2" tall, 2-1/2" on-center (crest to crest). 24" coverage width when lapped on single rib.

  • 29 & 26 gauge
  • Galvanized
  • Galvalume
  • Stock Lengths

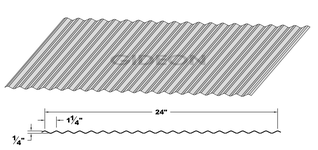

Corrugated 1.25

A proven favorite that lasts for years

Major ribs are 1/4" tall, 1-1/4" on-center (crest to crest). 24" coverage width when lapped on single rib.

  • 29 & 26 gauge
  • Galvanized
  • Galvalume
  • Stock Lengths

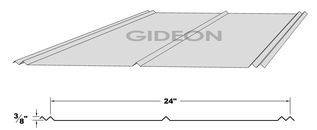

5-V Crimp

A proven favorite that lasts for years

Major ribs are 1/2" tall. 24" coverage width.

  • 29 & 26 gauge
  • Galvanized
  • Galvalume
  • Stock Lengths
